Mobile
UV bridges
Application:
The mobile UV-Bridge form Beltron is perfect for a flexible and variable use around the ambit UV-Radiation, experimental purposes and research. The stickable module system enables a quick installation and disassembling and provides a space saving solution for the necessity of 80 - 120 W/cm.
Design:
The device is equipped by a UV-Lamp and a stepless power regulation from 30 to 100 %. Optional the mobile UV-Bridge can be equipped with cold-mirror reflector and quartz glass panes (for heat reduction).

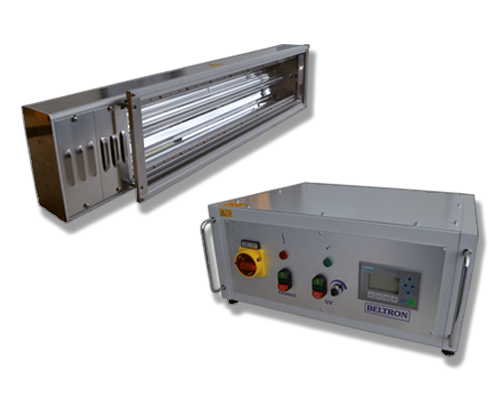

Details of our high-performance
Mobile UV Bridge:
+ UV lamp
+ seperate, mobile ballast
+ Main switch
+ Compact control
Details BELTRON
Mobile uv bridges Details of our
high-performance
Mobile UV bridges
Beltron UV bridges have many key benefits for you and your production, take advantage of our quality benefits:
+ over 55 Years quality "Made in Germany"
+ Innovative UV technology
+ Complete, even UV-curing
+ Very short curing times
+ Sustainable energy-saving systems
+ Further processing possible immediately
+ Highly scratch-resistant and shiny
+ Durable & increased chemical resistance
advantage BELTRON
Mobile UV Bridges Advantages of our
high-performance
Mobile UV bridges
BELTRON mobile UV bridges
are used successfully in:
+ printing industry
+ electronic industry
+ plastic industry
+ building materials industry
+ textile industry
+ packaging industry
+ pharmaceutical industry
+ automotive industry
+ glass industry
+ engineering
applications BELTRON
Mobile UV bridges
Uses of our
high-performance
Mobile UV bridges
Compact control
- with LED-Screen
Compact control
Seperate, mobile
ballast
UV lamp
Main switch
UV lamp
- completely ready for installation
- with connection for compressed air
seperate, mobile ballast
Main switch
- on / off
+
Mobile UV bridges
Detail 5
+
Mobile UV bridges
Detail 1
+
Mobile UV bridges
Detail 2
+
Mobile UV bridges
Detail 3
+
Mobile UV bridges
Detail 4
Lamp unit completely ready for installation,
with connection for compressed air
Compact balance, ready for operation
Stepless power regulation by an electronic balance
Compact control with LED-Screen
8 meter cable between switch board and UV-Lamp housing
Lamp filling: Hg (Mercury), Fe (Iron), Ga (Gallium)
Working area from 35 to 200 cm
Electrical supply: 400 V / 50 Hz / 3~
CE-Sign
The mobile UV bridges are used successfully in:
These are just a few examples from the various partner portfolio of Beltron.
- printing industry
- electronic industry
- plastic industry
- building materials industry
- textile industry
- packaging industry
- pharmaceutical industry
- automotive industry
- glass industry
- engineering
Advice to Mobile UV bridges:
Phone: +49 6074 - 89199-0 or E-Mail: info@beltron.de
Contactform - Mobile UV bridges
