Application:
UV drying hardens dyes, inks, printing inks, coatings, adhesives and other
UV-sensitive materials by utilising polymerisation instead of volatilisation of
solvents. Until now, conventional UV lamps containing mercury have been utilised for hardening processes. Meanwhile the more efficient, more
environmentally friendly UV LED technology has now created a tried and tested and superior alternative.
Unlike mercury vapour lamps, LED hardening utilises semiconductor-based LEDs to generate ultraviolet (UV) light. BELTRON relies on the advantages of UV LED technology with maximised performance capabilities, reliability and
UV energy.

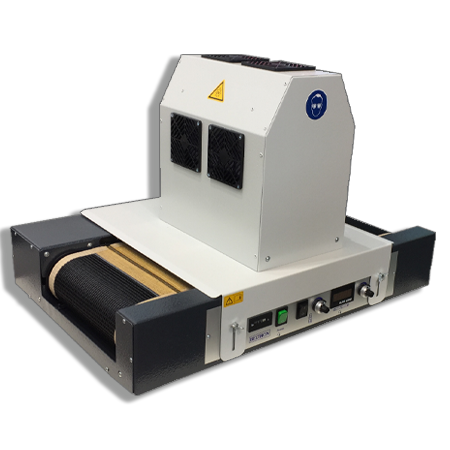

UV-LED tabledryer
BE 20
Design:
The complete turnkey unit is equipped with a UV LED light irradiation unit. Since the heat generated during the UV-LED radiation is only
1 / 10 of the heat produced during the conventional UV irradiation, the cooling and exhaust fans consume accordingly less energy.
The plant is designed for a working width of 150 mm. The lamp can be started and stopped instantly and therefore no shutter is required during production. The UV power is adjustable within 20 to 100%.
Details Beltron
UV-LED BE 20 Tabledryer:
+ cooling system
+ conveyor belt
+ SPS control (optional)
+ Compact control (standard)
Details BELTRON
UV-LED BE 20 Tabledryer
Details of our
high-performance
UV-LED BE 20 Tabledryer
Beltron UV-LEDdryers have many
key benefits for you and your production, take advantage of
our quality benefits:
+ Over 55 Years of quality "Made in Germany"
+ Innovative UV technology
+ Complete, uniform UV hardening
+ Very short hardening times
+ Sustainable energy saving systems
+ Additional processing immediately possible
+ Highly scratch-resistant and glossy
+ Durable & increased chemical resistance
Beltron UV-LED BE 20 Tabledryer
are used successfully in:
+ printing industry
+ electronic industry
+ plastic industry
+ building materials industry
+ textile industry
+ packaging industry
+ pharmaceutical industry
+ automotive industry
+ glass industry
+ engineering
advantage BELTRON
UV-LED BE 20 tabledryer
Advantages of our
high-performance
UV-LED BE 20 Tabledryer
applications BELTRON
UV-LED BE 20 Tabledryer
Uses of our
high-performance
UV-LED BE 20 Tabledryer
Conveyor belt
Compact control (standard)
Light source
Conveyor belt
- Teflon belt
Light source
- LED Light source
- height adjustable
with High-Tech-Micro-Optic
Compact control (standard)
- UV output in the range 20 - 100%
infinitely variable - Digital belt speed indicator
+
UV-LED BE 20 tabledryer
Detail 1
+
UV-LED BE 20 tabledryer
Detail 2
+
UV-LED BE 20 tabledryer
Detail 3
+
UV-LED BE 20 tabledryer
Detail 4
Wave length: 365 nm, 395 nm
UV-LED-Power: 1 - 12 W/cm²
Radiation width: up to 150 mm
Lenght: 700 mm
Depth : 455 mm
Height: 560 mm
Conveyor belt width: 210 mm
Conveyor belt speed: 2 - 27 m/min with maintenance-free drive motor
Passage height: adjustable
Digital belt speed control
Electrical supply: 230V / 50 Hz
CE-Sign
The UV-LED BE 20 tabledryer are used successfully in:
- printing industry
- electronic industry
- plastic industry
- building materials industry
- textile industry
- packaging industry
- pharmaceutical industry
- automotive industry
- glass industry
- engineering
These are just a few examples from the various partner portfolio of Beltron.
This device is equipped with a LED module from Phoeseon
PDF Data sheet
UV-LED BE 20 tabledryer
