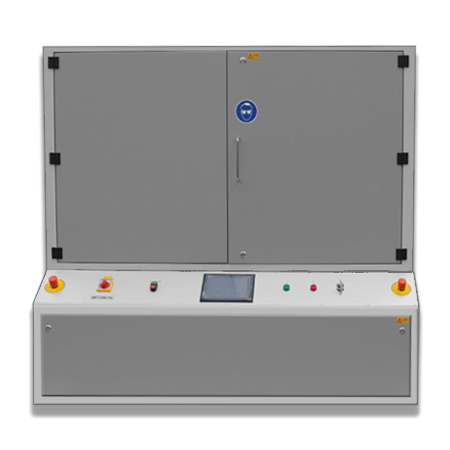

UV-LED
Chain Conveyor
Application:
The UV LED chain conveyor hardens all UV-reactive materials, such as e.g. thick-film protective lacquers or paint, adhesives, casting resins and UV lacquers or paint. Until now, conventional UV lamps containing mercury have been used for hardening processes. Meanwhile the more efficient, more environmentally friendly UV LED technology has now created a tried and tested and superior alternative.
Unlike mercury vapour lamps, LED hardening utilises semiconductor-based LEDs to generate ultraviolet (UV) light. BELTRON relies on the advantages of UV LED technology with maximised performance capabilities, reliability and
UV energy.
You are here: Beltron GmbH | Products | UV-LED dryer overview | UV-LED chain conveyor
Design:
The UV LED chain conveyor hereby impresses with an individual width adjustment (for printed circuit boards up to 240 x 400 mm) and height adjustment from 20 - 110 mm, electronically controlled cooling system, PLC computer control for monitoring and controlling all machinery functions and a conveying speed regulating system, which is adapted to the production cycle and required UV metering level. Compared to the customary BELTRON UV dryers, the UV LED chain conveyor provides a space-saving stand-alone solution in the smallest of spaces.
Details Beltron
UV-LED chain conveyor:
+ Conveyor belt
+ Bulbs
+ Compact control (standard)
Details BELTRON
UV-LED chain conveyor
Details of our
high-performance
UV-LED chain conveyor
Beltron UV-LED dryers have many
key benefits for you and your production, take advantage of
our quality benefits:
+ Over 55 Years of quality "Made in Germany"
+ Innovative UV technology
+ Complete, uniform UV hardening
+ Very short hardening times
+ Sustainable energy saving systems
+ Additional processing immediately possible
+ Highly scratch-resistant and glossy
+ Durable & increased chemical resistance
Beltron UV-LED chain conveyor
are used successfully in:
+ printing industry
+ electronic industry
+ plastic industry
+ building materials industry
+ textile industry
+ packaging industry
+ pharmaceutical industry
+ automotive industry
+ glass industry
+ engineering
advantage BELTRON
UV-LED chain conveyor
Advantages of our
high-performance
UV-LED chain conveyor
applications BELTRON
UV-LED chain conveyor
Uses of our
high-performance
UV-LED chain conveyor
Conveyor belt
Bulbs
Compact control (standard)
Conveyor belt
- Teflon- or Metal belt
Bulbs
- 1 - 3 UV bulbs or
1 - 3 IR modules or
combination UV- and IR modules
Compact control (standard)
- Display of the system status
- Digital belt speed indicator
- Error message with plain text display
- Standby function
+
UV-LED chain conveyor
Detail 1
+
UV-LED chain conveyor
Detail 2
+
UV-LED chain conveyor
Detail 3
+
UV-LED chain conveyor
Detail 4
Wave length: 365 nm or 395 nm
(others according to customer request)
UV LED power: 12 W/cm²
(others according to customer request)
Width of radiation: up to 240 mm
Length: 1700 mm
Depth: 835 mm
Height: 1640 mm
Electrical supply: 230 V / 50 Hz
CE-Sign
The UV-LED chain conveyor are used successfully in:
- printing industry
- electronic industry
- plastic industry
- building materials industry
- textile industry
These are just a few examples from the various partner portfolio of Beltron.
- packaging industry
- pharmaceutical industry
- automotive industry
- glass industry
- engineering
This device is equipped with a LED module from Phoeseon
Advice to UV-LED chain conveyor:
Phone: +49 6074 - 89199-0 or E-Mail: info@beltron.de
