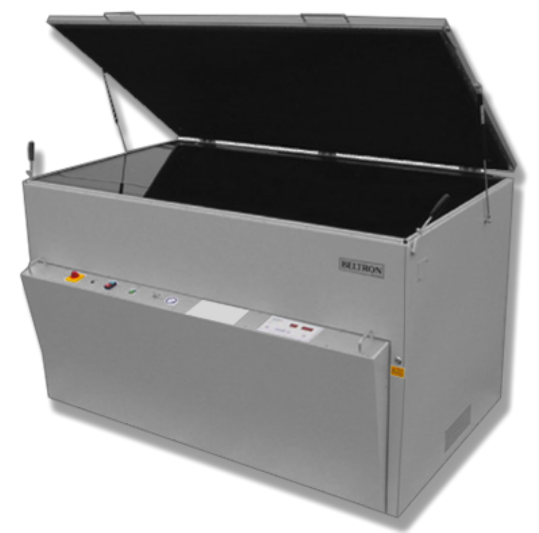

Copying unit for screen printing
Beltroframe S
Application:
For exposure of screen printing frames from below.
Design:
The BELTROFRAME S screen printing device, for exposure of screen frames, comprises one self-supporting metal housing with fixed-position, streak-free UV special glass pane, top frame with quick-closing fastener, highly-elastic diamond-coated rubber cover and suction nozzles, CU earth tape for anti-static discharge and creating a homogeneous vacuum.
The device is equipped with a quick-start copier lamp BELTROLUX D 3000W, 5000 W or 6000 W. Eliminating previous standby times provides, in combination with a special UV high-performance reflector, an energy saving of up to 80 %. Highest-possible efficiency and precise illumination are achieved by utilising more environmentally friendly radiant emitter.
Clearly arranged and easy to view control panel with operating and control elements, including vacuum gauge and vacuum reducing valve, service-friendly, retractable slide-in unit with lamp unit (thereby easy and quick lamp exchange), maintenance-free high-performance vacuum pump, exhaust fan.
| Our partner in the screen printing industry |
||
|
Maschinenbau Bochonow GmbH Tel +49 - 6054 - 9097416 E-Mail: info (at) bochonow.de |
|
Details of our high-performance
Copying unit for screen printing Beltroframe S:
+ ESG glass
+ for exposure of screens from below
+ specially designed UV reflectors
inside the machine
+ Beltromat 815 control computer
Details BELTRON
Copying unit
for screen printing
Beltroframe S
Details of our
high-performance
copying equipment
Beltron copying devices have many decisive advantages for you and your production, benefit from our quality advantages:
+ Over 55 Years of quality "Made in Germany"
+ For exposure of screen printing frames
+ Complete, uniform exposure
+ Very short exposure periods
+ Sustainable energy-saving systems
+ additional processing immediately possible
+ Highly scratch-resistant and glossy
+ Durable & increased chemical resistance
BELTRON Copying unit for screen printing Beltroframe S are used successfully in:
+ printing industry
+ electronic industry
+ packaging industry
+ automotive industry
Advantage BELTRON
Copying unit
for screen printing
Beltroframe S
Advantages of our
high-performance
copying equipment
Applications BELTRON
Copying unit
for screen printing
Beltroframe S
Uses of our
high-performance
copying equipment
Beltromat 8100
control computer
For exposure of screens
from below
Specially designed UV reflectors
inside the machine
ESG glass
ESG glass
- fixed
- streaking
Beltromat 8100
- control computer
For exposure of screens
from below
Spezially designed UV reflectors
inside the machine
+

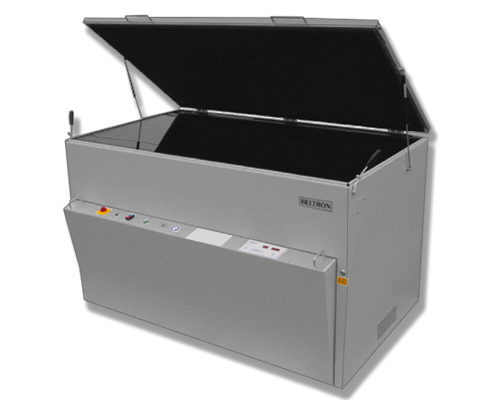

Copying unit for screen printing Beltroframe S
Detail 1
+
Copying unit for screen printing Beltroframe S
Detail 2
+
Copying unit for screen printing Beltroframe S
Detail 3
+
Copying unit for screen printing Beltroframe S
Detail 4
+
Copying unit for screen printing Beltroframe S
Detail 5
Art.-No.:
52.159
52.165
52.166
52.167
52.163
52.164
52.170
Special Sizes on request
max. screen frames in mm
750 x 800
750 x 800
900 x 1000
900 x 1000
1100 x 1350
1100 x 1350
1100 x 1350
Lamp power
3000 W
5000 W
3000 W
5000 W
3000 W
5000 W
6000 W
Options:
Art.-No.:
60.006
48.033
60.999
Discription:
insertion lamp, yellow
Control computer BELTROMAT 8100
Increased strength vacuum pump for reducing the vacuum time
The Copying unit for screen printing Beltroframe S is used successfully in:
These are just a few examples from the various partner portfolio of Beltron.
- printing industry
- electronic industry
- packaging industry
- automotive industry
