The Beltron UV Stick is optionally available as UV-A, -B, -C - multi-channel measuring device. The newly developed measuring device is utilised in industrial UV curing applications and displays the total radiation intensity in mW/cm² and the metering level in mJ/cm².
It is possible to record UV intensities and UV metering levels in tubes / bottle systems with the UV Stick I. The UV Stick II also additionally measures the temperature.
The sensor is mounted in a dummy provided by the customer. The small dimensions and extremely low weight thereby enable UV measurement under realistic conditions.

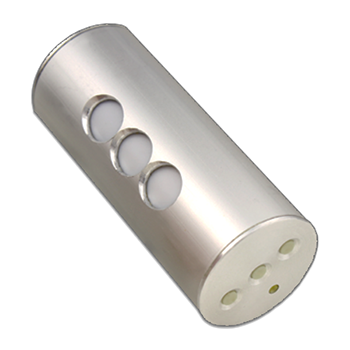

Several integrated UV sensors are utilised for measurement. The UV intensity in the different UV ranges is measured individually, and still simultaneously, by utilising microprocessors. The UV metering level is calculated separately over the irradiation time in the individual UV ranges. The user not only receives information about the total energy, but can also record the UV ranges individually. The measuring sensors are located next to each other on the cylindrical-shaped housing wall of the UV stick.
All measured values are stored by means of a micro SD card and can be loaded, edited and stored on a PC. This makes it possible, for example, to document and create a history of one or more radiation devices based on the measured values using graphics.
UV Stick I & II:
+ Range of meusurement:
1 bis 2.000 mW/cm2
+ Sampling Rate: 5 msec. (200/sec.)
+ Memory cyclus: 90 sec.
+ Triggertime: 120 sec.
BELTRON UV Stick I & II are used successfully in:
+ printing industry
+ electronic industry
+ plastic industry
+ building materials industry
+ textile industry
+ packaging industry
+ pharmaceutical industry
+ automotive industry
+ glass industry
Beltron Measuring Equipment have many key benefits for you and your production, take advantage of our quality benefits:
+ over 55 Years quality "Made in Germany"
+ Innovative UV technology
+ Complete, even UV-curing
+ Very short curing times
+ Sustainable energy-saving systems
+ Further processing possible immediately
+ Highly scratch-resistant and shiny
+ Durable & increased chemical resistance
A B C
A B C Temp.
UV-A 315 – 410 nm
UV-B 280 – 315 nm
UV-C 230 – 280 nm
Range of measurement
Accuracy of measurement
Sizes / Weight
Scope of delivery
1 to 2.000 mW/cm²
5 msec (200/sec)
Within approx. 10 mm distance on the perpendicular axis.
LiPO 3,7 V fix installed, Auto-Off after 1 minute
The charging capacity is sufficient for approx. 100 measurements.
Charging takes place via the attached USB-Cabel.
Diameter 25 mm, L= 60 mm / ca. 40 g
Aluminium. The housing must be protected by the customer against intensive UV-radiation and heat, i.e.
via a suitable mounting or shield.
0 to 110° C / 32 to 230° F ( only UV Stick II )
0 to 45° C / 32° to 113° F , Surrounding max. 110 °C / 230 ° F for 10s
UV-Stick, Micro-SD-Card, USB-Cabel, PC-Software, Plastic transport box
The calibration, which is traceable to PTB, occure in accordance to DIN EN ISO / IEC 17025 and will be confirmed by the attached certificate.
The UV-Stick I & II are used successfully in:
These are just a few examples from the various partner portfolio of Beltron.
