BELTRON UV integrators are used for the detection of energy in UV hardening systems, UV drying ovens, UV exposure systems, printing plate exposure systems and other graphic devices. Inspecting the UV light metering level, and corresponding adjustments in the production process, enables incorrect exposures and material scrap to be prevented.
There is a sensor located on the underside of the device which detects the UV radiation. Special filters and photodiodes absorb the visible, as well as the IR range of the radiation, so that only the desired spectral range is measured. The total UV metering level can be read out on an LCD display at the end which shows the measured value.

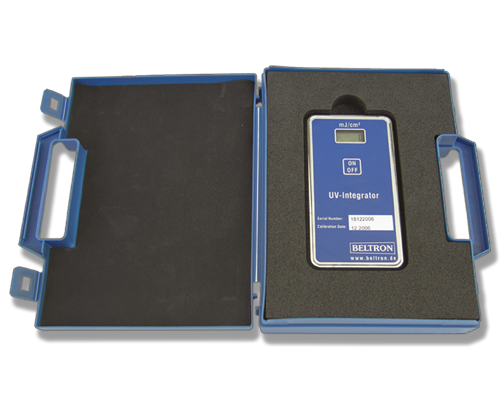

A handy storage case is included in the scope of delivery. We provide our customers with a regular calibration service in order to ensure optimum use of the device. This cost-effective service is usually implemented within a few hours in our company and is based on measurements and specifications from tested DKD measurement laboratories.
UV Integrator Typ I:
+ LCD display
+ On / Off switch
+ Transport housing
+ Power supply: 3,6 V Lithium-Battery
BELTRON UV Integrator Typ I are used successfully in:
+ printing industry
+ electronic industry
+ plastic industry
+ building materials industry
+ textile industry
+ packaging industry
+ pharmaceutical industry
+ automotive industry
+ glass industry
Beltron Measuring Equipment have many key benefits for you and your production, take advantage of our quality benefits:
+ over 55 Years quality "Made in Germany"
+ Innovative UV technology
+ Complete, even UV-curing
+ Very short curing times
+ Sustainable energy-saving systems
+ Further processing possible immediately
+ Highly scratch-resistant and shiny
+ Durable & increased chemical resistance
Display as 6-digit LCD display 0 - 999999 mJ/cm²
Dimensions 80 x 145 x 12 mm
Weight approx. 500 grams
Switch On / Off / Automatic Off
Power supply 3.6 V lithium battery
Current consumption 100µA (10,000 operating hours)
Housing as chrome-plated aluminium housing
Spectral measuring range 250 - 410 nm (other measuring ranges available)
The UV Integrator Typ I are used successfully in:
These are just a few examples from the various partner portfolio of Beltron.
