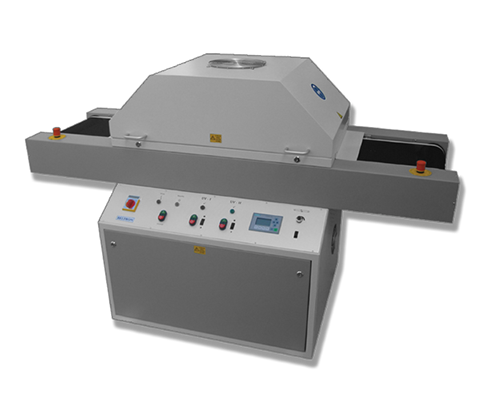

UV curing unit

             BE 35 BETC

Application:


For uv curing of conformal coatings and solvent-free thick film lacquers on pcbs or other 3D objects such as: uv thick film lacquers TWIN CURE ® from Peters Lackwerke or Dymax Corp. and other uv products.

Design:

PFT-conveyor belt with suction/cooling system, max. working width 350 mm, max. working height adjustable between 25 and 95 mm, belt speed adjustable in the range of 1:10, i.e. 2-20 m/min, belt speed  0,5 – 12 m/min stepless controllable (other ranges possible), stepless power control in the range of 30 - 100% for optimal UV radiation,easy and fast replacement of UV lamps, special reflector

for optimized focus of uv radiation, integrated electronic control system with all control elements and digital belt speed indication, service and maintenance optimized, exhaust fan with connection for exhaust pipes, special design for curing of thick film lacquers.



Compact Control, display of various parameters such as uv set value, operating hours, lamp current. The PLC also controls the following tasks: lamp ignition, lamp fuses, idle run, over temperature, exhaust air, converter.



On customer request we can equip the machines with:

Selective filters, quartz glass for further reduction of product temperature, or a SPS computer control.





Details Beltron high-performance
UV dryer Slimsize:



+ cooling system



+ Conveyor belts



+ PLC control (optional)



+ Compact control (standard)











 Details BELTRON
UV curing unit
BE 35 BETC
  Details of our
high-performance
UV curing unit BE 35 BETC







Beltron UV dryers have many key benefits for you and your production, take advantage of our quality benefits:

+ over 50 years quality "Made in Germany"

+ Innovative UV technology

+ Complete, even UV-curing

+ Very short curing times

+ Sustainable energy-saving systems

+ Further processing possible immediately

+ Highly scratch-resistant and shiny

+ Durable & increased chemical resistance





Beltron UV curing unit BE 35 BETC are used successfully in:


+ printing industry

+ electronic industry

+ plastic industry

+ building materials industry

+ textile industry

+ packaging industry

+ pharmaceutical industry

+ automotive industry

+ glass industry

+ engineering











 advantage BELTRON
UV curing unit
BE 35 BETC
  Advantages of our
high-performance
UV curing unit BE 35 BETC














 applications BELTRON
UV curing unit
BE 35 BETC

 Uses of our
high-performance
UV curing unit BE 35 BETC

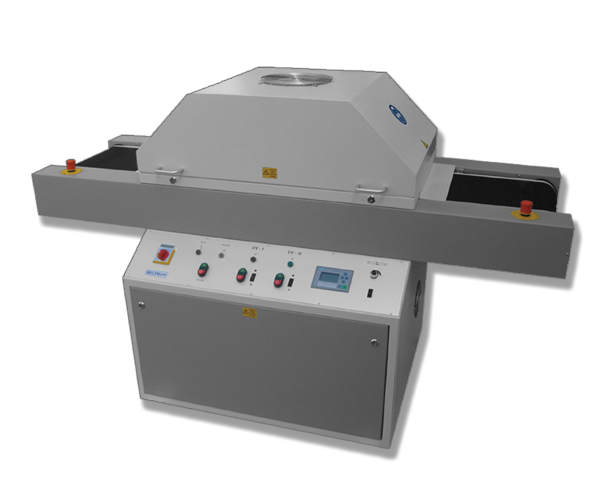

Detail

UV curing unit BE 35 BETC

Our Technology and Sales-Partner in Electronic Industry

ahk GmbH · Gewerbering 8 - 13 · 74193 Schwaigern · Germany

Tel.: +49 (0)7138 - 81274-0  ·  Fax: +49 (0)7138 - 81274-10

Email: info@ahk-service.de  ·  Internet: www.ahk-service.de

Technical Information

UV curing unit BE 35 BETC

Special designed high gloss furnished reflector which
also undercuts the components

Quick start UV lamp

Uv energy 80-120 W/cm

Belt speed: 1,0 - 10,0 m/min (others on request)

Belt width: 300 mm

Working width: max. 350 mm

Substrate height: approx 100 mm (others on request)

Electrical supply: 400 V / 50 Hz / 3~

CE-Sign



The UV curing unit BE 35 BETC are used successfully in:



  • printing industry
  • electronic industry
  • plastic industry
  • building materials industry
  • textile industry

These are just a few examples from the various partner portfolio of Beltron.

  • packaging industry
  • pharmaceutical industry
  • automotive industry
  • glass industry
  • engineering

Information

UV curing unit  BE 35 BETC
