Application:

The BE 7 UV + LED combination dryer as combination device is, according to customer request, equipped with a 4, 8 or 12 W/cm² LED module and a long-term tried and tested UV lamp unit. This device combines the previous, conventional UV with the more environmentally friendly and increased efficiency UV LED technology.

UV + LED dryer

      BE 7 combination

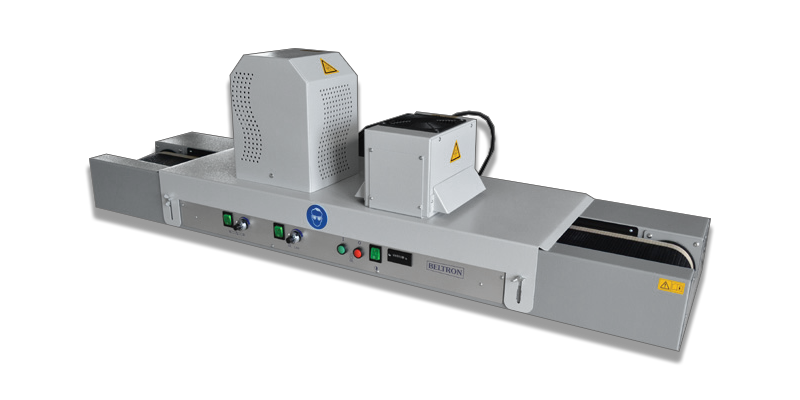

UV + LED dryer BE 7 combination

Application UV:

The complete, ready for operation device is equipped with one UV LED and one conventional UV unit and simulates the interaction between new and long-term tried and tested UV technology. Ideal for developing lacquers, paints, coatings, inks and adhesives.



Application LED-UV:

UV-curing drying inks, printing inks, coatings, adhesives and other UV-sensitive materials by polymerization rather than evaporation of solvents. So far, conventional mercury UV lamps were used for the cure, but meanwhile, the efficient, environmentally friendly UV-LED technology is a proven and superior alternative. Unlike mercury vapor lamps, the LED curing use semiconductor-based LEDs to generate ultraviolet (UV) light. BELTRON relys on the UV-LED technology's advantages with maximized performance, reliability and UV energy.





Details Beltron
UV + LED dryer BE 7 combination:



+ Conveyor belt



+ Light sourcet



+ Passage height



+ Stepless control













 Details BELTRON
UV + LED dryer BE 7
combination

 Details of our
high-performance
UV + LED dryer BE 7 combination







Beltron UV-LED dryers have many
key benefits for you and your production, take advantage of
our quality benefits:

+ Over 50 years of quality "Made in Germany"

+ Innovative UV technology

+ Complete, uniform UV hardening

+ Very short hardening times

+ Sustainable energy saving systems

+ Additional processing immediately possible

+ Highly scratch-resistant and glossy

+ Durable & increased chemical resistance



Beltron UV + LED dryers BE 7 combination are used
successfully in:


+ printing industry

+ electronic industry

+ plastic industry

+ building materials industry

+ textile industry

+ packaging industry

+ pharmaceutical industry

+ automotive industry

+ glass industry

+ engineering











 advantage BELTRON
UV + LED dryer BE 7
combination


Advantages of our
high-performance
UV + LED dryer BE 7 combination














 applications BELTRON
UV + LED dryer BE 7
combination

 Uses of our
high-performance
UV + LED dryer BE 7 combination





Details
UV + LED dryer BE 7 combination

Technical Information

UV + LED dryer BE 7 combination

The UV + LED dryer BE 7 combination are used successfully in:



  • printing industry
  • electronic industry
  • plastic industry
  • building materials industry
  • textile industry
  • packaging industry
  • pharmaceutical industry
  • automotive industry
  • glass industry
  • engineering

These are just a few examples from the various partner portfolio of Beltron.

Wave length: 365 nm, 395 nm

UV-LED-Power: 1 - 12 W/cm²

Radiation width: 75 mm

Length: 700 mm

Depth: 330 mm

Height: 390 mm

Conveyor belt width: 120 mm

Conveyor belt speed: 2 - 27 m/min with maintenance-free drive motor

Digital belt speed control

Passage height: adjustable

Electrical supply: 230V / 50 Hz

CE-Sign

This device is equipped with a LED module from Phoeseon

Information

UV + LED dryer BE 7 combination

Advice to UV + LED dryer BE 7 combination:

Phone: +49 6074 - 89199-0 or E-Mail: info@beltron.de

Contactform - UV + LED dryer BE 7 combination
