Application:

UV-curing drying inks, printing inks, coatings, adhesives and other UV-sensitive materials by polymerization rather than evaporation of solvents.

So far, conventional mercury UV lamps were used for the cure, but meanwhile, the efficient, environmentally friendly UV-LED technology is

a proven and superior alternative.

Unlike mercury vapor lamps, the LED curing use semiconductor-based LEDs to generate ultraviolet (UV) light. BELTRON relys on the UV-LED technology's advantages with maximized performance, reliability and

UV energy.

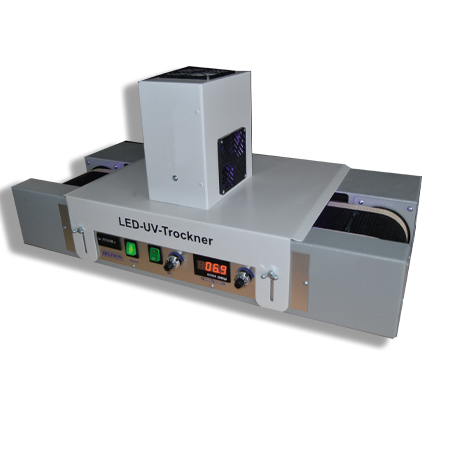

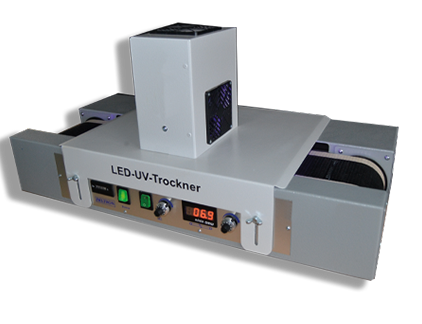

UV-LED dryer

                BE 7







UV-LED dryer BE 7

Design:

The complete turnkey unit is equipped with a UV LED light irradiation unit. Since the heat generated during the UV-LED radiation is only

1 / 10 of the heat produced during the conventional UV irradiation, the cooling and exhaust fans consume accordingly less energy. The

plant is designed for a working width of 7 cm. The lamp can be started and stopped instantly and therefore no shutter is required during production. The uv power is adjustable within 20 to 100%.



Details Beltron
UV-LED dryer BE 7:



+ Conveyor belt



+ Light sourcet



+ Passage height



+ Stepless control













 Details BELTRON
UV-LED dryer BE 7

  Details of our
high-performance
UV-LED dryer BE 7







Beltron UV-LED dryers have many
key benefits for you and your production, take advantage of
our quality benefits:

+ Over 55 Years of quality "Made in Germany"

+ Innovative UV technology

+ Complete, uniform UV hardening

+ Very short hardening times

+ Sustainable energy saving systems

+ Additional processing immediately possible

+ Highly scratch-resistant and glossy

+ Durable & increased chemical resistance



Beltron UV-LED dryers BE 7
are used successfully in:


+ printing industry

+ electronic industry

+ plastic industry

+ building materials industry

+ textile industry

+ packaging industry

+ pharmaceutical industry

+ automotive industry

+ glass industry

+ engineering













 advantage BELTRON
UV-LED dryer BE 7


Advantages of our
high-performance
UV-LED dryer BE 7














 applications BELTRON
UV-LED dryer BE 7


 Uses of our
high-performance
UV-LED dryer BE 7





Details
UV-LED dryer BE 7

Technical Information

UV-LED dryer BE 7

The UV-LED dryer BE 7 are used successfully in:



  • printing industry
  • electronic industry
  • plastic industry
  • building materials industry
  • textile industry
  • packaging industry
  • pharmaceutical industry
  • automotive industry
  • glass industry
  • engineering

These are just a few examples from the various partner portfolio of Beltron.

Wave length: 365 nm, 395 nm

UV-LED-Power: 1 - 12 W/cm²

Radiation width: 75 mm

Length: 700 mm

Depth: 330 mm

Height: 390 mm

Conveyor belt width: 120 mm

Conveyor belt speed: 2 - 27 m/min with maintenance-free drive motor

Digital belt speed control

Passage height: adjustable

Electrical supply: 230V / 50 Hz

CE-Sign

This device is equipped with a LED module from Phoeseon

Information

UV-LED dryer BE 7

Advice to UV-LED dryer BE 7:

Phone: +49 6074 - 89199-0 or E-Mail: info@beltron.de

Contactform - UV-LED dryer BE 7
